Fiber Optic Splitter PLC 1:64 ABS box SM 2mm 1m FC APC Connectors
1×64 Optic Splitter Basic Information:
1×64 Plastic ABS Box Optic Splitter is used in FTTx, PON, and CATV networks, Geehe Fiber Optic Splitter Modules are available in 1x4, 1x8, 1x16,1x32, and 1×64 configurations with your choice of SC, LC, FC, ST connectors. APC and UPC polish are available for the connector end faces. APC polish is most commonly chosen to reduce back reflection which can damage transmission equipment. Operating wavelength range 1260nm to 1650nm and test reports provided at 1310nm and 1550nm.
PLC Splitters are branching devices that are used to distribute optical signals to multiple locations for processing. They are designed for FTTx Passive Optical Networks, CWDM, DWDM, and optical cable TV Systems.
1×32 PLC Splitter Specification& parameters
| Parameter | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 2x4 | 2x8 | 2x16 | 2x32 |
| Operating Wavelength(nm) | 1260~1650 |
| Port Wavelength Range (nm) | 1310 ±20,1490 ±10 and 1550 ±20 |
| Insertion Loss @1310nm/1550nm | 7.1 | 10.5 | 13.6 | 16.8 | 20.5 | 7.4 | 10.8 | 14.5 | 17.5 |
| Uniformity (dB) | 0.5 | 0.8 | 1 | 1.2 | 1.8 | 1.2 | 1.5 | 1.8 | 2 |
| PDL @ 1310/1550 nm (dB) | ≤0.3 |
| Return Loss@ 1310/1551 nm (dB) | ≤-55 |
| Input Power (mW) | 250max |
| Operating Temperature (℃) | -40~+85℃ |
| Storage Temperature (℃) | -40~+85℃ |
| Fiber Type | Corning G657A1 |
1×64 ABS Box PLC Splitter Features& Benefits:
* Corning fiber
* Low Insertion and Excess Loss
* Wide Wavelength Range, High Uniformity
* Environmentally Stable
* Telcordia GR-1221-Core Compliant
* Even or Various Splitting Ratios
* 1x2 through 1x64 Configurations
* Optional connectors termination upon request
* Available in 250um & 900um fiber, 2mm or 3mm
* Package ABS Box, Steel tube, LGX, Fiber patch panel
1×64 ABS Box PLC Splitter Application&Standard:
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
- Long-Haul Tele/Data Communications
- Fiber Optic Equipment and Systems
- CATV Systems
- Local Area Network, PON, and FTTH
- Fiber Sensors
- DWDM Networks
ABS Box Optic Splitter Package Dimensions:
| W×H×L (mm) | Port |
| 100x80x10 | 1x4 | 1x8 | 2x4 | 2x8 |
| 120x80x18 | 1x16 | 1x32 | 2x16 | 2x32 |
| 140x114x18 | 1x32 | 2x32 | 1x64 |
Ordering Information:
| PLC- | AAA- | B- | CC- | D- | EE | FF- | GG |
| | 104=1x4 108=1x8 …… 164=1x64 204=2x4 …… 232=2x32 | 2=2.0mm jacket
3=3.0mm jacket | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | 2=2.0mm jacket
3=3.0mm jacket | 05=0.5m 10=1.0m 15=1.5m 20=2.5m | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector | SA=SC/APC SU=SC/UPC LA=LC/APC LC=LC/UPC 00:No connector |
| Configuration | Input Fiber Type | Input Fiber Length | Output Fiber Length | Output Fiber Length | Input connector | Output Connector |

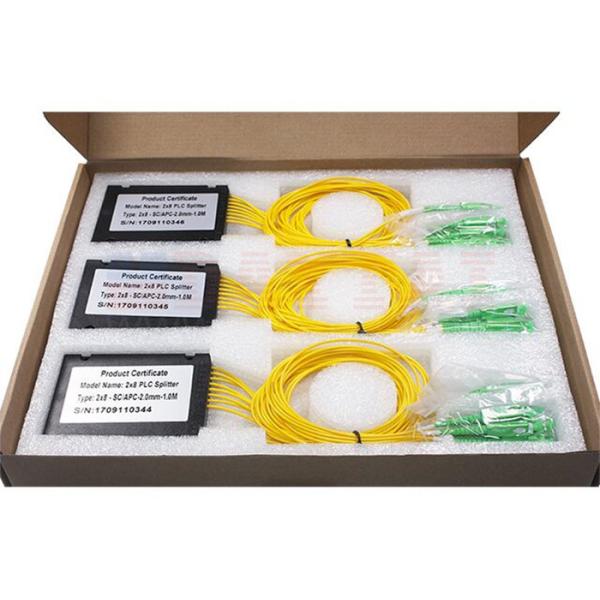

ABS Box PLC Splitter Package:
More types of Fiber Optic Splitters:
Geehe Service:
1) High Environmental Stability
Low insertion loss, low polarization dependent loss, low back reflection, and good uniformity
2) Compact Structure
Small size, it can be directly installed in a variety of transfer box and just take up little space
3) Strict Quality Control
We guarantee that every product to the hands of customers is subject to stringent testing standards
4) Factory Audit
We cooperate with famous brands and Japanese customers, with 15 years of factory inspection experience and be familiar with the whole inspection process by SGS
5) Fast Deliver&after service
Turnover for the orders is fast, within 8 hours can confirm deliver time for all customers, 24/7 after service online.
